Máy đo lực ZP SERIES của IMADA

Series ZP

USB Output – High Performance
ZP digital force gauges are capable of processing 1,000 data/second, so force profiles can be analyzed for much more than just the peak. Collect peak data on your computer with the USB cable and ZP Logger (included) or 1,000 data/second with ZP Recorder (optional).

Main Features
ZP gauges have programmable high/low setpoints for go/no-go testing. Orange lights up for measurements less than Low setpoint, green for between High and Low setpoint, and red for over High setpoint.

Use real time mode to display load transients, or peak mode to capture the peak force achieved during a test. Selectable lbf, kgf, or Newtons measuring units.

Store up to 1,000 values in memory and download to your computer using USB or RS-232C port

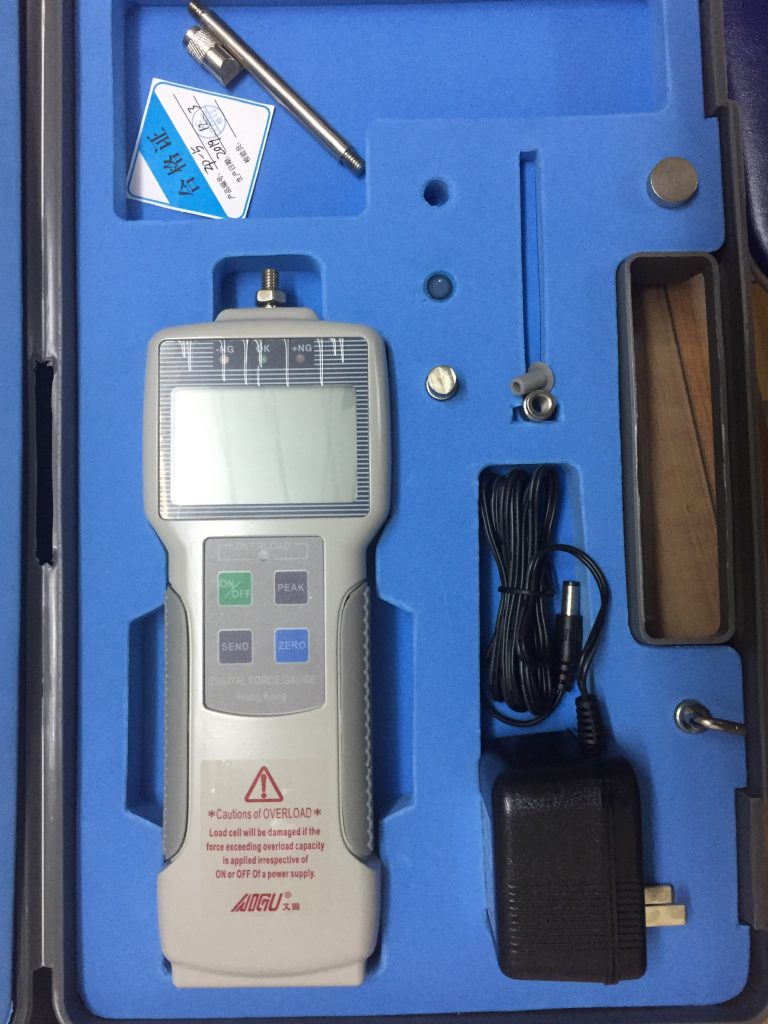

ZP gauges are sold in kits which include a hard plastic carrying case, AC adapter/charger, attachments (flat head, conical, chisel, notched, small hook, large hook, Y-hook, and extension rod), Ni-MH rechargeable batteries, USB Driver and ZP Logger, and USB cable. An optional handle to facilitate the measurement of heavy loads is also available.

ZP Logger Software (included)
ZP Logger is a USB software utility that logs force values by pressing the Send button on the gauge, from either Peak or Real time modes. ZP Logger also downloads all values previously stored in gauge memory and saves in CSV format.

ZP Recorder Software (optional)
ZP Recorder is force data analysis software designed to interface with Imada ZP Series (USB) force gauges. ZP Recorder records and processes 1,000 data per second (not just the peak) and generates a graph with statistics. Zoom into any part of the graph to see individual data points at intervals of 1mS. Mouse over data points to display their force value.
